"Cardinally correct" GameCube block diagram

[Lumina333]

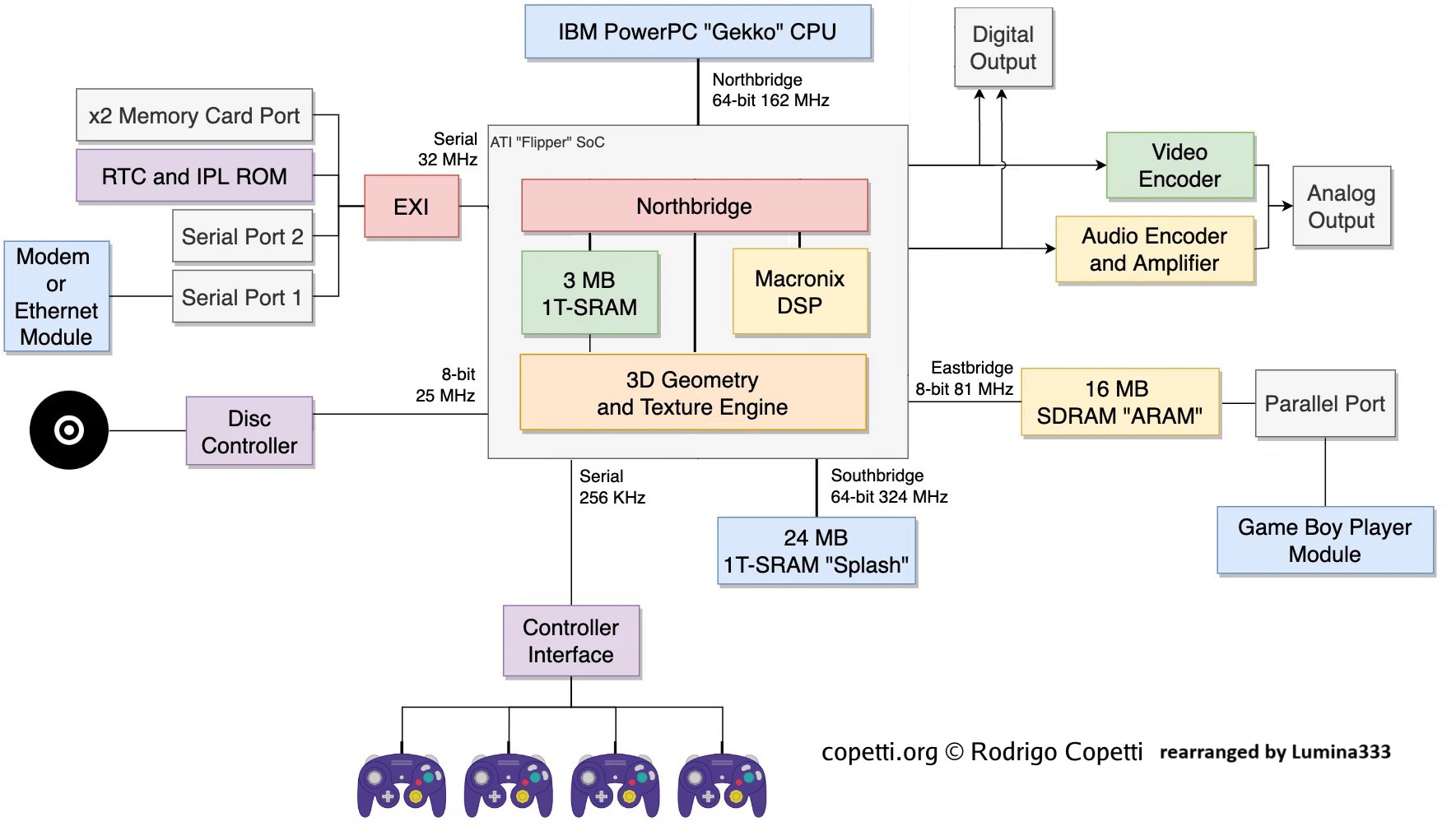

I redrew a "cardinally correct" version of the GameCube block diagram where the eastbridge and northbridge are closer to where one might expect them to be.

Source:

R. Copetti, "GameCube Architecture - A Practical Analysis", Copetti.org, 2019. [Online]. Available: https://www.copetti.org/writings/consoles/gamecube/. [Accessed: July 31, 2024].

Rearranged under the Creative Commons Attribution 4.0 International License.
